5V 2.4A AC-DC SMPS Power Module
The cion-5v-5w-ac-dc-smps-v1 is a compact, high-efficiency AC-DC SMPS module designed to power up your IoT devices, embedded systems, and smart automation projects.
Applications
- IoT devices and gateways
- Smart home systems
- Embedded electronics
- Industrial automation equipment
- LED driver circuits
- Wireless sensor modules
- DIY and prototyping boards
Electrical Specifications
- Input Voltage: 90V to 305V AC
- Input Frequency: 50/60 Hz
- Output Voltage: 5V DC (typical)
- Output Power: 12W max
- Output Current: Up to 2400mA
Mechanical Specifications
- Dimensions: 35mm (L) x 22mm (W) x 21mm (H)
- Weight: ~19 grams
- Mounting: Through-hole
Pin Configuration
Pin No. | Name | Description |
---|---|---|
1 | AC (L) | AC Line Input |
2 | AC (N) | AC Neutral Input |
3 | -V | DC Ground Output |
4 | +V | DC Positive Output |
Protections
- Over-voltage protection
- Over-current protection
- Short-circuit protection
- Surge and inrush current limiting
Environmental Ratings
- Operating Temperature: -15°C to +55°C
- Storage Temperature: -20°C to +75°C
- Humidity (non-condensing): 10% to 90% RH
- Cooling Method: Natural convection

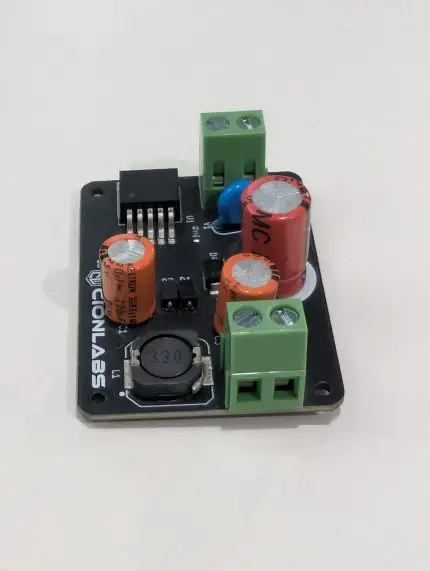

5V 3A DC-DC Converter | Industrial & IoT Ready
The cion-5v-dc-dc-v1 is a compact, high-efficiency DC-DC converter module designed to power up your IoT devices, embedded systems, and smart automation projects.
Applications
- IoT devices and gateways
- Smart home systems
- Embedded electronics
- Industrial automation equipment
- LED driver circuits
- Wireless sensor modules
- DIY and prototyping boards
Electrical Specifications
- Input Voltage Range: 6–48 V DC
- Output Voltage: 5V DC
- Maximum Output Power: 15W
- Output Current: Up to 3A
Mechanical Specifications
- Dimensions: 50mm x 36mm x 21mm
- Mounting: Through-hole
Protections
- TVS diode protection
Environmental Ratings
- Operating Temperature: -15°C to +55°C
- Storage Temperature: -20°C to +75°C
- Humidity (non-condensing): 10% to 90% RH
- Cooling Method: Natural convection
