5V 3A DC-DC Converter | Industrial & IoT Ready
₹150.00

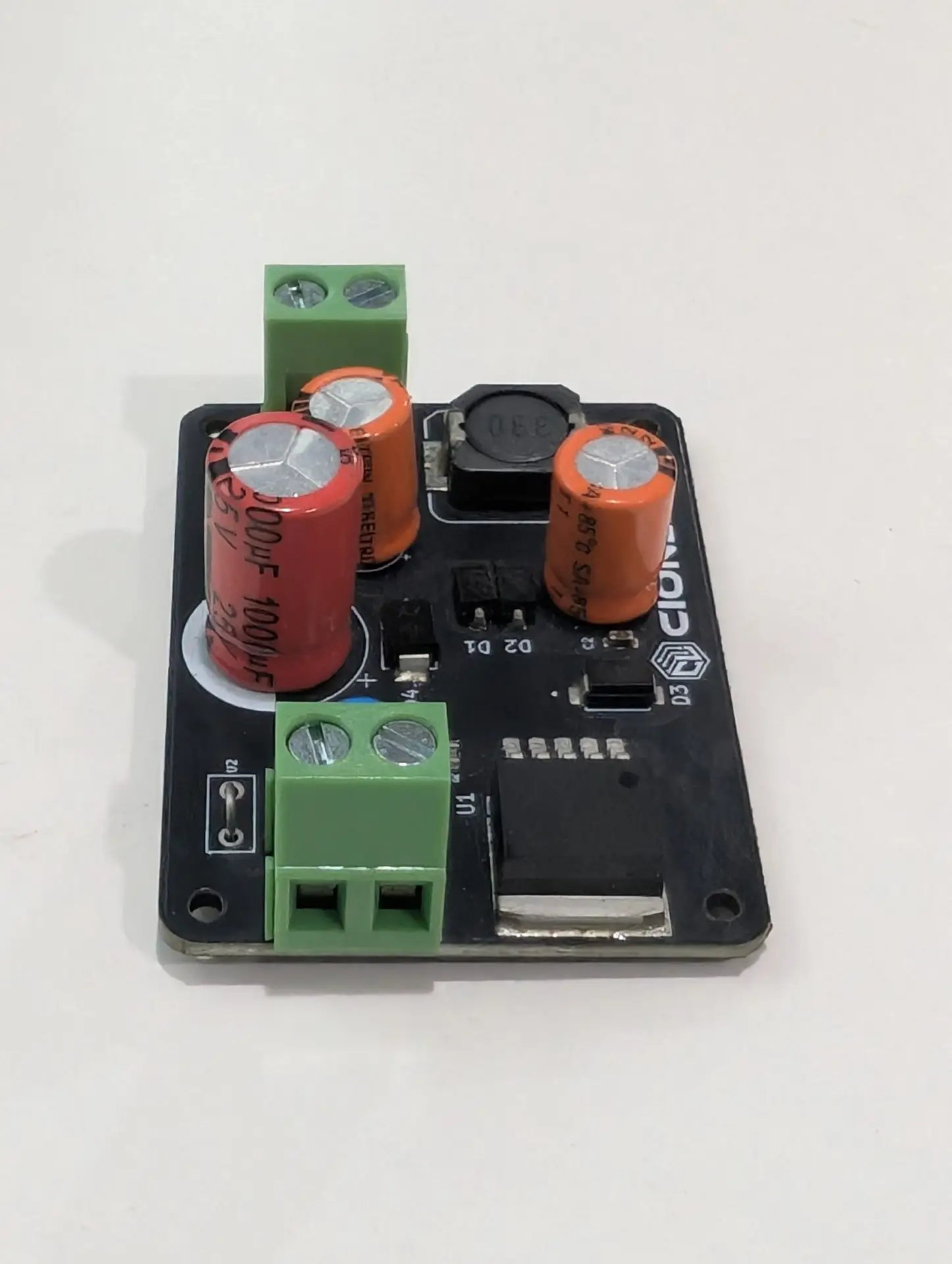

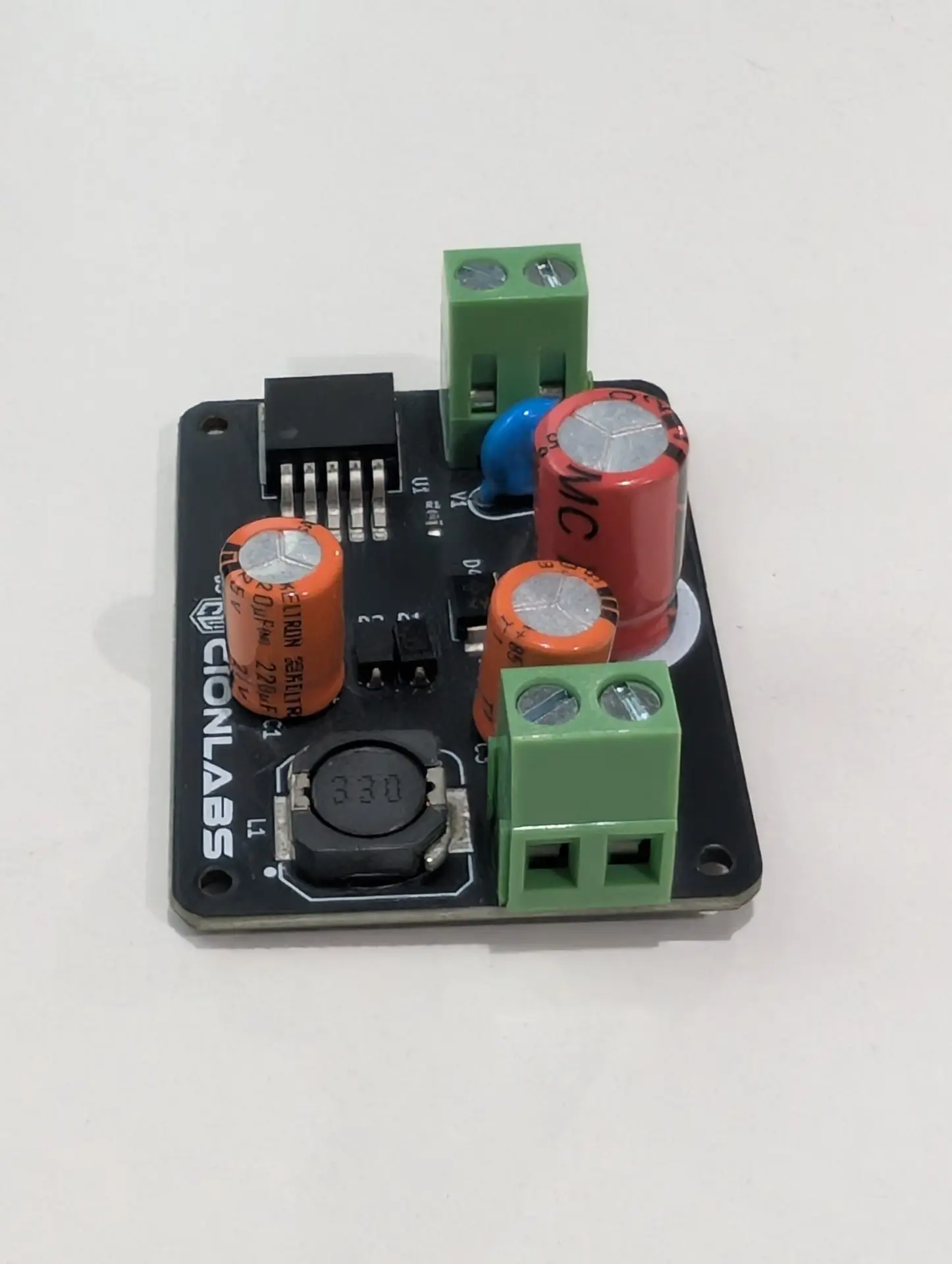

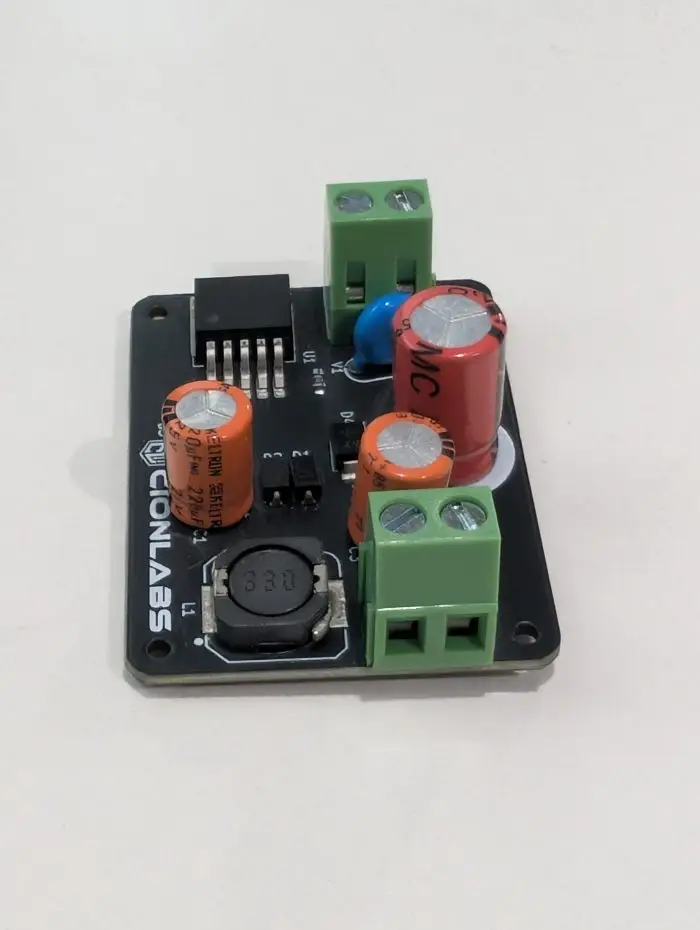

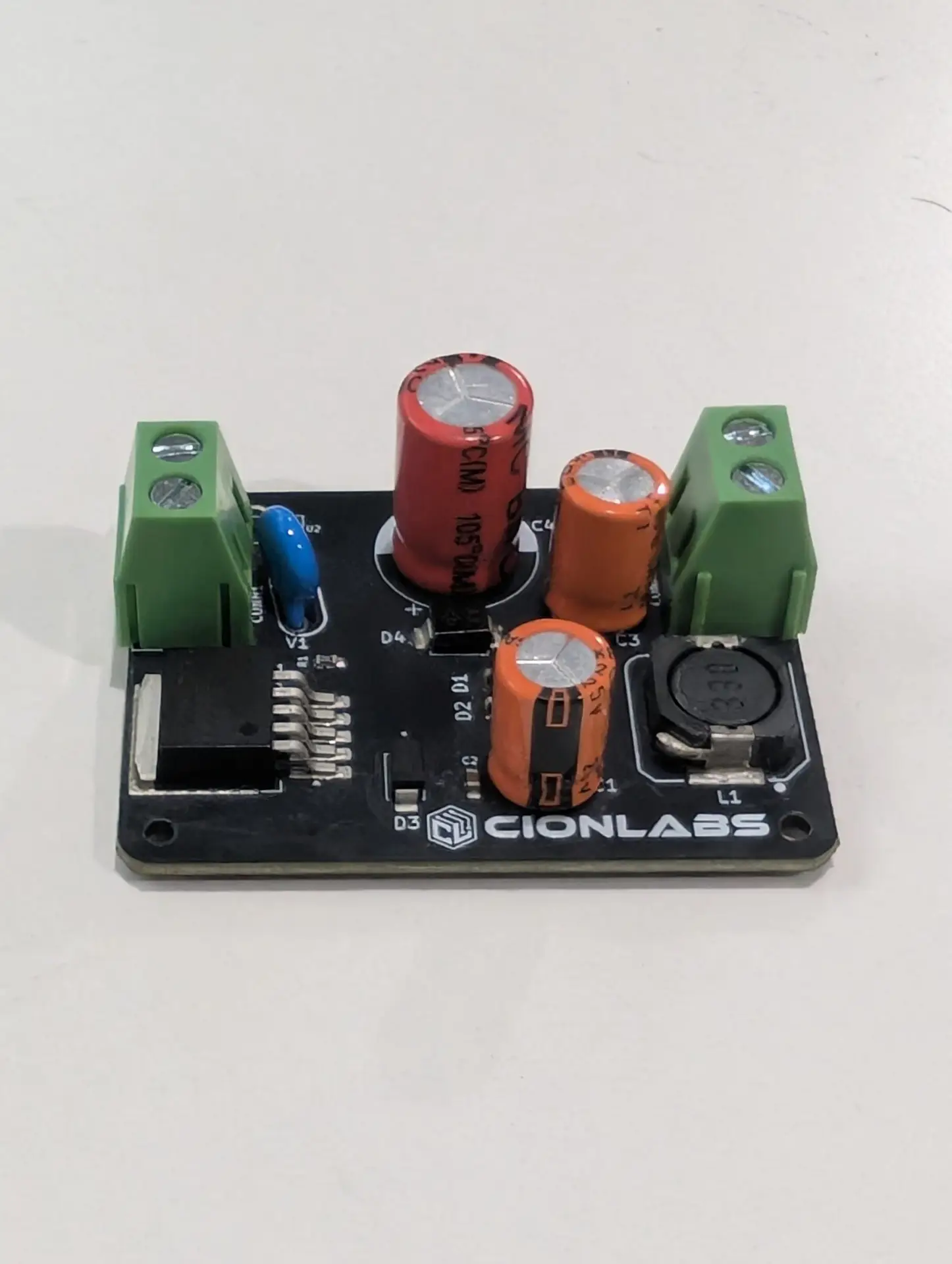

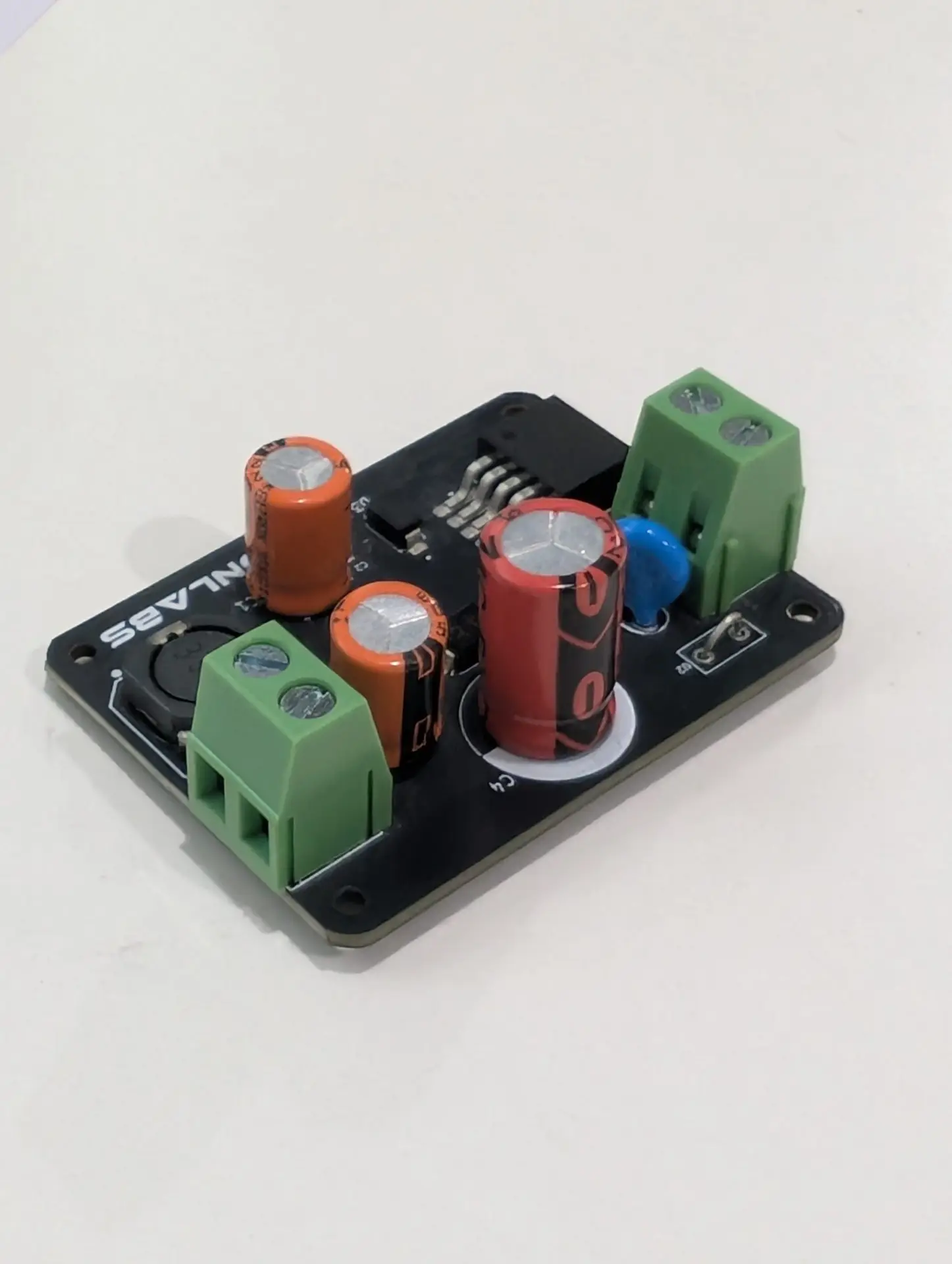

The cion-5v-dc-dc-v1 is a compact, high-efficiency DC-DC converter module designed to power up your IoT devices, embedded systems, and smart automation projects.
Applications
- IoT devices and gateways
- Smart home systems
- Embedded electronics
- Industrial automation equipment
- LED driver circuits
- Wireless sensor modules
- DIY and prototyping boards
Electrical Specifications
- Input Voltage Range: 6–48 V DC
- Output Voltage: 5V DC
- Maximum Output Power: 15W
- Output Current: Up to 3A
Mechanical Specifications
- Dimensions: 50mm x 36mm x 21mm
- Mounting: Through-hole
Protections
- TVS diode protection
Environmental Ratings
- Operating Temperature: -15°C to +55°C
- Storage Temperature: -20°C to +75°C
- Humidity (non-condensing): 10% to 90% RH
- Cooling Method: Natural convection
5V 3A DC-DC Buck Converter Module | Industrial & IoT Power Supply
Provide stable, reliable 5V power for sensitive electronics with this industrial-grade DC-DC buck converter. Designed for versatility and durability, it efficiently steps down a wide 6V to 48V DC input to a precisely regulated 5V output, capable of delivering up to 3A (15W) of continuous power. Ideal for powering microcontrollers, sensors, single-board computers, and communication modules in demanding environments, from factory automation and outdoor IoT nodes to robotics and embedded systems.
This module excels in efficiency, minimizing heat generation and power loss even under varying load conditions, while its ultra-low standby consumption makes it perfect for battery-powered or energy-conscious applications. Built for reliability, it incorporates Transient Voltage Suppression (TVS) diode protection to shield connected devices from input voltage spikes and surges. The compact, rugged metal housing (50x36x21mm) ensures durability, and secure screw terminal blocks facilitate easy, robust wiring integration without soldering.
Key Features & Specifications
-
Wide Input Range (6–48V DC): Compatible with common DC power sources like 12V/24V industrial supplies, automotive systems, solar panels, and power tool batteries.
-
Stable 5V/3A Output: Delivers a clean, regulated 5V DC supply at up to 3 amps (15W), sufficient for powering Raspberry Pi, Arduino, ESP32 clusters, and peripheral devices.
-
High Efficiency & Low Standby Power: Advanced switching design ensures optimal power conversion, reducing thermal stress and conserving energy in always-on applications.
-
Robust Protection: Integrated TVS diode safeguards against voltage transients and inductive load spikes, enhancing system longevity.
-
Industrial Design: Compact metal enclosure provides mechanical strength and EMI shielding. Screw terminal blocks offer secure, vibration-resistant connections.
-
Ready for Integration: Simple three-wire connection (VIN+, VIN-, VOUT+, VOUT-, GND). Operating temperature: -40°C to +85°C (industrial grade).
Typical Applications
-
Industrial IoT Gateways & Controllers
-
24V PLC/Control System Peripheral Power
-
Automotive & Mobile Electronics Power Conditioning
-
Solar-Powered & Battery-Based Installations
-
CCTV & Surveillance System Power
-
Robotics & Drivetrain Electronics
-
Prototyping & Test Bench Power Solutions
For documentation and help, refer to our Knowledge Base section
| Pre-Programmed | None, Smart Socket, UART interface Smart Switch, UART interface Smart Switch – 4S, UART interface Smart Fan |
|---|
Related products

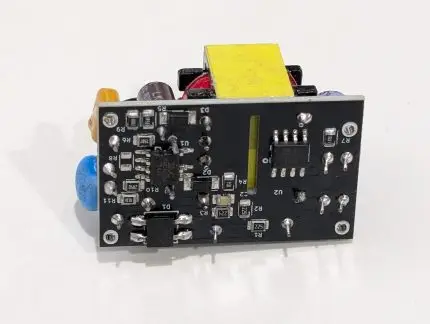

5V 2.4A AC-DC Power Supply Module – Isolated SMPS for Industrial & IoT Applications
