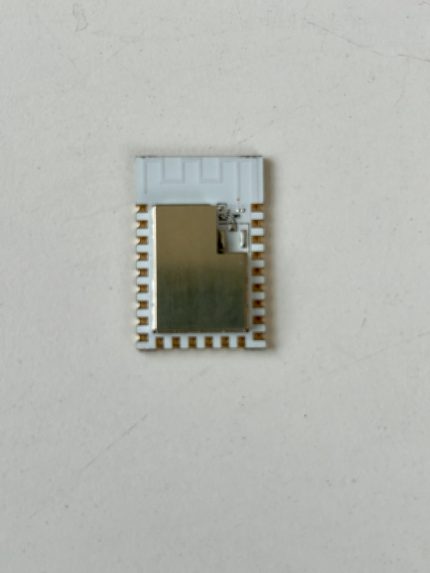

BC201HZ-22P IoT module based on BK3633

~~₹236.00~~₹141.60

BC201HZ-22P Bluetooth 5.2 Dual Mode and Proprietary 2.4 GHz Wireless especially designed for BLE Mesh

Bluetooth 5.2 Dual Mode and proprietary 2.4 GHz protocol
USB Host and Device interface with USB audio capability
Around 5 mA full operation current
Around 1 μA deep sleep current with low power running time
Bluetooth 5.1 standard Angle of Arrival (AoA) and Angle of Departure (AoD)
Antenna array with a maximum 16 antennas for precise indoor positioning
High-speed SPI interface up to 32 MHz

Bulk Discount

Min	Max	Discount
10	99	10%
100	499	15%
500	999	20%

Hurry up! Flash Sale Ends Soon!

DAYS

HOURS

MINS

SECS

Hurry! only 1 left in stock.

Description

Description

Overview

BC201HZ-22P is based on the Beken BK3633 chip, a highly integrated wireless system that supports Bluetooth 5.2 Dual Mode and proprietary 2.4 GHz protocols. It integrates a high-performance RF transceiver, baseband, low-power processor, rich feature peripheral units, programmable protocol, and profile to support various applications. Open source SDK with ready examples like SIGMESH BLE mesh, indoor navigation, Apple Airtag, etc.

Pin Configuration

The pin configuration is as below:
