Beken BK3633 – Bluetooth 5.2 & 2.4GHz SoC
From ₹110.00
Overview
Features
Features
• Bluetooth 5.4 Dual Mode and proprietary 2.4 GHz protocol
• Around 5 mA full operation current
• Around 1 μA deep sleep current with low low-power running timer
• Bluetooth Angle of Arrival (AoA) and Angle of Departure (AoD)
• Antenna array with a maximum of 16 antennas for precise positioning
• Classic Bluetooth 1 Mbps
• Proprietary 2.4 GHz 250 kbps, 1 Mbps, and 2 Mbps
• High output power up to 10 dBm and Bluetooth LE Power Control
• 32-bit RISC Core with 80 KB data memory and up to 80 MHz speed
• SiP Flash: 512 KB or 1 MB
• 32-byte eFUSE
• Operating voltage: 0.9 ~ 1.5 V (boost), 2.0 ~ 3.6 V (buck)
Clock
• 16 MHz crystal reference clock with internal tuning load capacitance
• 64 MHz digital PLL clock
• 32 kHz ring oscillator
• External 32 kHz crystal oscillator
• MCU can run with any clock source with an internal frequency divider
• Dedicated audio PLL clock for I2S main clock
• Interface and peripheral units
• Quad IO FLASH programming
• I2C interface
• High-speed SPI interface up to 32 MHz
• Two UART interfaces, one with UART download support
Interfaces and peripherals
• Quad IO FLASH programming
• I2C interface
• High-speed SPI interface up to 32 MHz
• Two UART interfaces, one supports UART download
• Multi-channel high-resolution 32-bit PWM with capture mode
• USB host and device interface with USB audio capabilities
• On-chip high-precision temperature sensor
• On-chip 10-bit general-purpose ADC
• GPIO with multiplexing interface function
• True Random Number Generator (TRNG)
• AES 128-bit hardware accelerator
• I2S/PCM digital audio interface, master-slave mode
• High-quality, high-speed, low-power clock output
• Code encryption and online decryption
• Secure JTAG and system protection
Typical package types
• 32-pin QFN 4 mm x 4 mm
• 40-pin QFN 5 mm x 5 mm
• 48-pin QFN 6 mm x 6 mm
For documentation and help, refer to our Knowledge Base section
Beken is the official brand name of Bekencorp.
| Package Type | QFN32, QFN48 |
|---|
Related products
Beken BK7238 Wi-Fi & BLE 5.2 SoC for Smart Home & Lighting
The BK7258 is a cutting-edge, highly integrated 1x1 single-band 2.4 GHz Wi-Fi 6 (802.11b/g/n/ax) and Bluetooth 5.4 Low Energy (BLE) combo solution tailored for high-security and resource-intensive applications. Featuring a 32-bit ARMv8-M Star MCU and a wide array of peripheral interfaces, the BK7258 is perfectly suited for advanced Internet of Things (IoT) applications.
The BK7258 boasts state-of-the-art security built on a robust security architecture. It includes an integrated IoT Platform Security Suite (IPSS) for enhanced password and system security controls. The IPSS incorporates comprehensive and robust security features, creating a highly secure execution environment for IoT devices.
Utilizing advanced design techniques and ultra-low-power process technology, the BK7258 delivers a highly integrated, efficient, and secure solution with minimal power consumption. This makes it ideal for advanced IoT applications, including IP cameras, HMI applications, smart locks, etc.
Beken BK9535 Low Latency Wireless Audio Transmitter SoC
The BK9535 is a professional wireless audio transmitter chip delivering studio-quality digital audio with less than 3ms latency. Its highly integrated single-chip design supports VHF/UHF/1GHz bands and pairs with BK9532/BK9522 receivers for robust, cost-effective systems ideal for live sound and critical communications.
BK2482 2.4GHz SoC: Low-Power Wireless MCU
BK2480 is a high-performance, ultra-low-power 2.4 GHz RF System-on-Chip (SoC) designed for wireless connectivity. It integrates an 8051-compliant MCU, RF transceiver, 8KB OTP memory, and essential peripherals like USB, UART, and GPIOs. Perfect for compact, battery-efficient devices such as wireless keyboards, mice, remote controls, USB dongles, and smart lighting solutions.
BK3437 Bluetooth 5.0 Dual Mode SoC Chip for IoT & Data
Jumpstart your wireless project with the BK3437, a complete Bluetooth 5.0 System-on-Chip. This highly integrated solution combines a dual-mode radio (Classic & Low Energy), a capable MCU, 160KB of programmable Flash, and essential peripherals like I2C, SPI, and UART all in one tiny 4x4mm package. Perfect for creating custom IoT sensors, smart home devices, HID controllers, and data bridges without needing an external microcontroller. Simplify your design, reduce BOM cost, and accelerate development.
BK3635 Ultra-Low Power SoC for IoT Devices & HID Peripherals
The BK7258 is a cutting-edge, highly integrated 1x1 single-band 2.4 GHz Wi-Fi 6 (802.11b/g/n/ax) and Bluetooth 5.4 Low Energy (BLE) combo solution tailored for high-security and resource-intensive applications. Featuring a 32-bit ARMv8-M Star MCU and a wide array of peripheral interfaces, the BK7258 is perfectly suited for advanced Internet of Things (IoT) applications.
The BK7258 boasts state-of-the-art security built on a robust security architecture. It includes an integrated IoT Platform Security Suite (IPSS) for enhanced password and system security controls. The IPSS incorporates comprehensive and robust security features, creating a highly secure execution environment for IoT devices.
Utilizing advanced design techniques and ultra-low-power process technology, the BK7258 delivers a highly integrated, efficient, and secure solution with minimal power consumption. This makes it ideal for advanced IoT applications, including IP cameras, HMI applications, smart locks, etc.

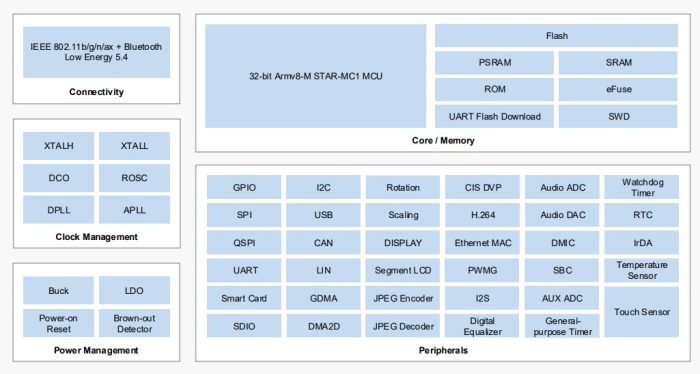

BK7258 SoC: Wi-Fi 6 & Bluetooth 5.4 LE Combo for advanced IoT
